Charger Multiplex LN-6015 EQU

Product code: MUL 92532

Multiplex

Quick Overview

 All-purpose micro-processor controlled 12-Volt automatic fast charger with integral EQUALIZER.

he MULTIcharger LN-6015 EQU can be used to charge and discharge virtually all types of battery generally used in modelling (LiPo, LiFe, LiIo, NiMH, NiCd and Pb batteries).

€74.32

Availability: Out of stock

Charger Multiplex LN-6015 EQU

More Views

Details

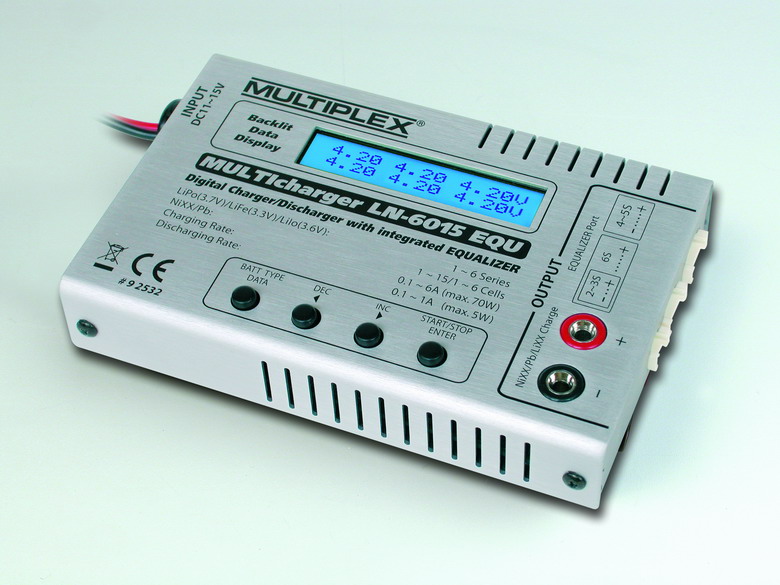

    Charger Multiplex LN-6015 EQU     #92532

All-purpose micro-processor controlled 12-Volt automatic fast charger with integral EQUALIZER.


The MULTIcharger LN-6015 EQU can be used to charge and discharge virtually all types of battery generally used in modelling (LiPo, LiFe, LiIo, NiMH, NiCd and Pb batteries). At the same time it is capable of balancing individual cell voltages (LiPo, LiFe and LiIo batteries only). The individual cell voltages can be displayed on the generously-sized screen during the charge, discharge or EQUALIZE process. The charger can also balance the individual cell voltages of your Lithium battery without charging or discharging the pack at the same time.



Naturally the MULTIcharger LN-6015 EQU can also be used to condition batteries (NiMH and NiCd batteries only).



Integral EQUALIZER

- MULTIPLEX Li-BATT BX batteries can be connected directly to the charger’s EQUALIZER port (FlightPower / Thunder Power compatible)

- Separate adaptor sets are available for batteries fitted with different balancer connector systems


Separate Balancer / EQUALIZER not required

Ultra-simple to operate using just four buttons

Numerous charge / discharge and EQUALIZE programs

Cyclic charging and discharging for NiXX batteries (max. 5 cycles, optionally terminating charged or discharged)

Backlit LCD screen with two lines of sixteen characters

Comprehensive display facilities during and after the charge / discharge / EQUALIZE process:

- Display of individual cell voltages

- Display of charge program currently in use

- Display of charge / discharge current

- Display of current battery voltage

- Display of elapsed charge / discharge time

- Display of charged-in / discharged charge quantity

Switchable warning and button-press beeps

Numerous safety functions

Robust aluminium case

Reverse polarity protection on input and output



- The MULTIcharger LN-6015 EQU constitutes the ideal charger for all types of battery used in modelling – ideal for all model aircraft, car and boat enthusiasts!

Specification


Input voltage: 11 - 15 V

Battery types and Cell counts

LiPo/LiFe/LiIo: 1 - 6S cells

NiCd/NiMH: 1 - 15 cells

Pb: 1 - 6 cells

Charge current (charge power): 0.1 - 6 A (max. 70 W)

Discharge current (discharge power): 0.1 - 1 A (max. 5 W)

Trickle charge current: 0 - 200 mA

Integral EQUALIZER: For up to 6S LiXX batteries

EQUALIZER balancing current: max. 300 mA

EQUALIZER accuracy: approx. 5 mV

EQUALIZER connectors: MULTIPLEX / FlightPower / Thunder Power compatible

Charge cut-off method: Delta-Peak termination for NiXX batteries Constant current / constant voltage for LiXX batteries





Additional Information

Manufacturer Multiplex
Package Weight 1.0000
